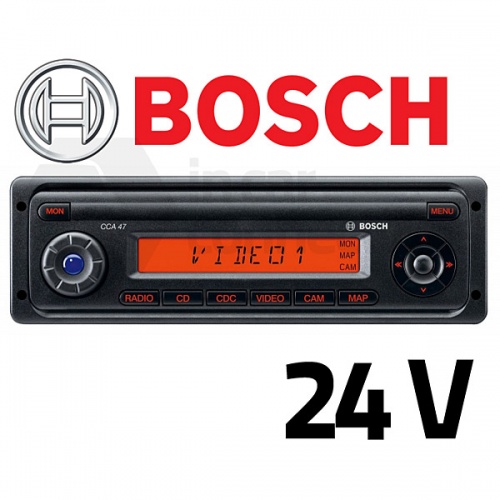

Bosch CCA 47 Coach Control Amp for coach, bus etc.
The Bosch CCA 47 Coach Control Amplifier head unit can be used to select any of the sound sources for the passenger cabin, such as the radio/CD, CD changer, DVD player or video player. Thanks to the easily accessible MAP key, the navigation map can be displayed directly on the passenger monitors. The CAM key can be used to select up to four cameras (in combination with a camera switch or a multimedia display).
The Coach Control Amplifier CCA 47 is the central control panel for the cabin area (Cabin) of the bus audio system Coach Classic Line 2. The radio CRD 47 with CD, a CD changer or an iPod® can be connected as audio sources. For video playback, it is possible to connect two devices, e.g. a DVD player and a TV tuner or a video player. The CCA 47 is equipped with two microphone inputs for microphone announcements.
Microphone 1 serves as driver microphone for announcements in the cabin area and mutes the source playback. It has priority over travel guide microphone 2. The control panel is switched on via the “ON jog button” or via the connected Coach Disc radio CRD 47. If the control panel is switched off, the CCA 47 can also be switched on via microphone 1 for announcements in the cabin area. The microphone volume is adjusted with the volume control during an announcement and stored separately for each microphone. If microphone 2 is operated, the audio source remains audible in the background (Mix function). The mix function and sound playback as well as basic functions of the CCA 47 can be activated and adjusted in a menu.
Switching on the “VIDEO” source activates a relay and the remote function. Existing monitors in the cabin area are also automatically switched on. The “MON” button allows switching the monitors on and off manually as desired via the relay. If a navigation device, e.g. with an RGB/FBAS converter (7 620 330 001) or driver monitor CLX 01 (7 620 310 006), is installed in the Classic Line system, the “MAP” button allows switching the map display on the monitor on and off. A camera selector switch (7 620 500 004) or CLX 01 allows connecting a back-up camera and three cabin cameras. The desired camera is selected with the “CAM” button on the CCA 47. The image playback uses the driver monitor.
Bosch is the brand leader in supplying equipment for commercial vehicles. All Bosch coach equipment models have been specifically designed for use in 24V bus and coaches.
This model can be used as a replacement for the Blaupunkt CCA 41.
Bosch CCA 47 Coach Control Amp for coach, bus etc. main features
- Operating voltage: 24V
- Operating temperature: -20⁰C to +70⁰C
- Installation angle: no limitations
- Standards: e1, FCC, CE, WEEE, RoHS
- Output power: 2 x 20 W
- Bass/treble/balance/fader for the passenger cabin
- Indication of the active passenger source on the display
- Source selection keys for radio, CD, CD changer, video, CAM and MAP
- 2 microphone inputs with driver microphone priority
- Night design for the operating keys
- Integrated 24-V relay to directly switch on a Bosch video system
