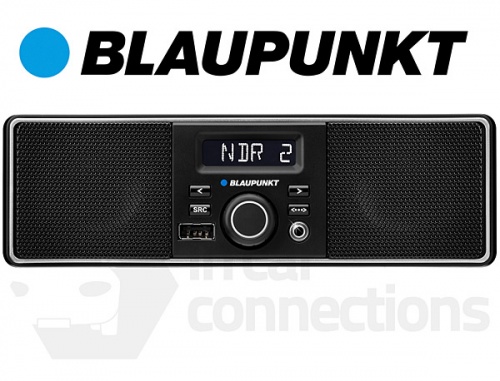

Blaupunkt Casablanca 2012 in car radio with speaker inside and USB MP3 AUX inputs

The Blaupunkt Casablanca 2012 car radio features modern connectivity options such as USB and AUX inputs and it also has two speakers built in making it perfect for retail / municipal vehicles and also classic cars where door speakers may not be possible.

Blaupunkt Casablanca 2012 main features

• Speakers INSIDE - two built in speakers
• Fastest plug & play installation with reduced vehicle harnessing
• Modern plug & play entertainment with USB support
• 1-DIN front facia with fix panel
• Built-in DSP for sound enhancement
• Front USB & Aux-in
• High quality FM/AM tuner
• Radio Data System (RDS PS/AF/REG/EON/TP/TA)
• Max. power: 4 x 40 W
• This model DOES NOT feature a CD slot

Speaker features

• Number of built-in speakers 2
• System Full range
• Diameter (mm) 50
• Nominal Impedance 4 ohms
• Output SPL (@1W,1M) 85dB ± 2dB
• On-Axis Freq. Response (-15dB) 180 to 15.000 Hz
• Cone and surrounding material Paper, Rubber
• Magnet material Ferrite

Data carrier features

• USB-removable storage USB 2.0
• Formatting USB FAT 32, FAT 16

Media player features

• Playback format MP3, WMA
• Title display files
• MP3 folder & file selection
• Display of characters up to 32
• Fast media reading
• Mix / Repeat
• Bitrate (kBit/s) 32 – 320
• Variable bitrates

Radio features

• Type of tuner Codem receiver
• Tuner areas World tuner, switchable via menu (EU/USA/SouthAmerica/Thailand)
• Wave bands FM, AM (MW)
• Radio Data System (RDS) Programme Service Name (PS), Alternative Frequency (AF), Regional Programme (REG), Enhanced Other Networks (EON), Traffic Program (TP), Traffic Announcement (TA)
• Station memory 10
• Interference suppression
• Frequency response (Hz) ± 3 dB 30 – 15.000

Equalizer features

• DSP (built-in)
• Sound presets pop, rock, classic

Amplifier features

• Number of channels 2
• Max. power (Watt) 2 x 40
• Sinus power (Watt) 2 x 16 at 14.4V, 4 ohms , 10% THD

Display features

• Type DOT (1-line)
• Digits 5
• Colour negative black and white
• Display angle optimized for dashboard

Inputs

• Antenna (number of) 1 (ISO)
• USB (number of, type) 1 front (standard A-type/150mA)
• USB (features) mass storage device (MSD)
• Aux-In (number of, type) 1 front (3.5 mm jack, 300 mV / 10 kΩ)

General features

• Styling according ECE-R21
• Menu language English
• Confirmation beep - (on/off)
• Front panel fixed
• Panel color black
• Encoder / key illumination red / red
• Permanent memory storage after car battery disconnect

Technical data

• Installation location 1-DIN-slot
• Voltage supply 12 Volts (10.8 -15.6 Volts)
• Current consumption operation < 250 mA
• Current consumption standby < 1 mA
• Supply connector 16 pin
• Weight (kg) ca. 1.04
• Height x Width x Depth (mm) 51 x 178 x 165

Accessories included in delivery

• Instruction book - (German, English, Indonesia)
• Mounting material
• Disassembly keys
• Power supply cables

Blaupunkt Barcelona 230 Technical Data

Radio Features

• Type of tuner: High-grade receiver
• World tuner (switchable): Europe, Americas, Thailand
• Wave bands: FM 1, 2
• Radio Data System (RDS):
• Alternative Frequency (AF)
• Enhanced Other Networks (EON)
• Programme Service Name (PS)
• Regional Programme (REG)
• Traffic Announcement (TA)
• Traffic Program (TP)
• Travelstore: Yes (FMT)
• Band Scan: Yes
• Preset Scan: Yes
• Search via frequency: No
• Station memory: 15
• Sensitivity: lo/dx
• Interference suppression: Yes
• Frequency response (Hz) -3dB: 30 – 15.000

Bluetooth

• Supported version: Bluetooth 2.0 with EDR
• Supported profiles: HFP, PBAP, A2DP, AVRCP
• Audio Streaming: Yes
• Pairing (number of devices): 5
• Pairing code: 1234
• Hands-free calling: via micro + radio speakers
• Hands-free microphone: built-in
• External microphone connector: Yes (rear)
• Key functions: accept / hang up / reject call / redial
• Phone book access: Yes (up to 1.000 entries by phone)
• History call lists: No
• Auto phone book sync.: No
• 2nd call handling (call wait / call hold): No
• Auto wake-up: No

Data carrier

• CD: CD-DA, CD-R, CD-RW
• Type disk-drive: automatic loading
• USB-removable storage: USB 2.0
• Memory cards: SDHC (up to 32 GB), SD, MMC
• Formatting USB / SD: FAT 32, FAT 16

Media player

• Playback format: MP3, WMA
• Title display: ID3-tag (version 2), file, folder
• MP3 folder & file browsing: Yes (w/ track interruption)
• MP3 file search: No
• iPod, iPhone control: Yes (via USB)
• Android MP3 control: Yes (with operating system Android 2.3 and higher. Android phone App “BLAUPUNKT Music Player for Series 230” available from Play Store and www.blaupunkt.com)
• Works with Pandora®: No
• Fast list browsing: Yes (via volume encoder)
• Display modes: Yes (file, folder, song, artist, album, elapsed time, total time, clock, all mode)
• Display of characters: File name up to 50, tags up to 30
• Variable display scrolling: Yes (once/always if >9 digits)
• Fast media reading : Yes (from USB, SDHC, SD, MMC)
• Mix / Repeat / Scan: Yes / Yes / Yes
• Bitrate (kBit/s): 32 – 320
• Variable bitrates: Yes

CD player

• Shock proof memory: Yes
• Frequency response (Hz) -1 dB: 20 – 20.000

Equalizer

• Bass / treble: Yes / Yes (+/- 7 steps)
• Balance / fader: Yes / Yes (+/- 9 steps)
• X-bass: Yes
• Sound presets: Rock, pop, classic

Amplifier

• Number of channels: 4
• Max. power: 4 x 50 Watt
• Sinus power at 14.4 V: 4 x 22 Watt

Display

• Type: DOT (1-line)
• Digits: 9
• Colour: negative, black and white
• Brightness adjustable: Yes
• Clock display: 24 / 12 hrs

Inputs

• Antenna (number of): 1 (ISO + adapter)
• USB (number of, type): 1 ( front / standard A-type)
• iPod/iPhone: Yes
• Memory cards: Yes
• Aux-In (number of, type): 1 front (3.5 mm jack)
• Telephone mute: Yes
• Telephone Line-In: No
• Steering wheel control: Yes (analog, programmable)
• Rear connector for optional external hands-free microphone: Yes

Outputs

• Loud speaker (number of): 4
• Pre-amplifier channel: 4-channel (Cinch)
• Pre-amplifier voltage: 4V
• Variable amplifier delay time: Yes
• Sub-out: Yes (Cinch)

General

• Software update: Yes (via USB)
• Menu language: English
• Variable scan time: Yes
• Confirmation beep: Yes (on/off)
• Front panel: release panel
• Panel / décor ring color: black / dark silver
• Encoder / key illumination: blue / red
• Permanent preset storage: Yes
• Demo mode: Yes
• Installation location: 1-DIN-slot
• Weight (kg): ca. 1.55
• Height x Width x Depth (mm): 52 x 178 x 170
• Panel case: Yes (included in delivery)
• IR remote control: No
• ISO connector cable set: No
