Shark Fin Aerial Kit | Shark Fin Antenna DAB AM FM & GPS plus cables and adapters
This shark fin aerial can be used for the reception of both AM/FM and DAB radio signals (for use with in-car DAB radios and tuners). This in-car universal AM/FM, GPS and DAB antenna is designed for roof mounting and has a modern shark fin aerial design. The AM/FM DAB antenna can be used to replace your existing car roof aerial. This shark fin antenna is suitable for all types of car DAB radio and tuner. This aerial features built-in 5M cables for DAB, FM and GPS. It also has adapters to make sure this kit covers most install requirements. There is an SMB to SMA adapter (DAB) and a Fakra to DIN and DIN to ISO (FM) adapter. The combination of cables and adapters included should cover most installations.Please ensure the connectors match your requirements. This kit is similar to the CT27UV83 but with 5m cables.
This item is provided with 2 years manufacturer's warranty.
Shark Fin Aerial AM/FM GPS DAB aerial antenna plus cables and adapters details
- High Quality FM, DAB and GPS Antenna
- Design: Sleek, Modern Shark Fin Roof mounted
- High Gloss Piano Black Finish

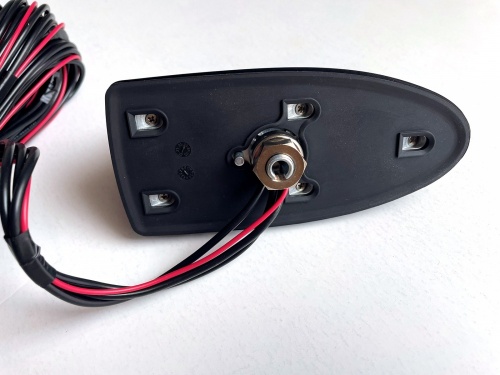

- Sturdy Cast Alloy base plate for strength and durability
- Flexible and shaped rubber gasket for leak protection
- Approximate dimensions: Length 137mm (13.7cm) / Width 62mm (6.2cm) at it's widest point. / Height 69mm (6.9cm).
- Roof Mounting: Drilling Hole Diameter 10.5mm
- Operating mode: active / amplified
- Application area: DAB Digital radio, AM/FM radio and GPS
- Type: Roof mount

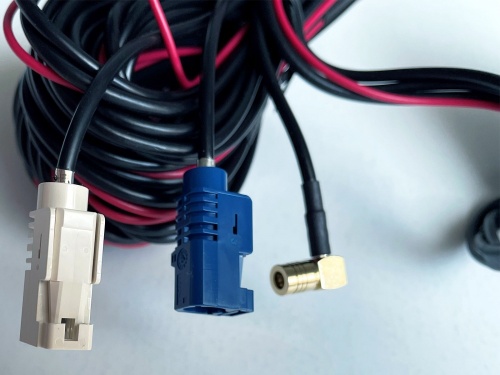

- DAB: SMB connector (push-on type)

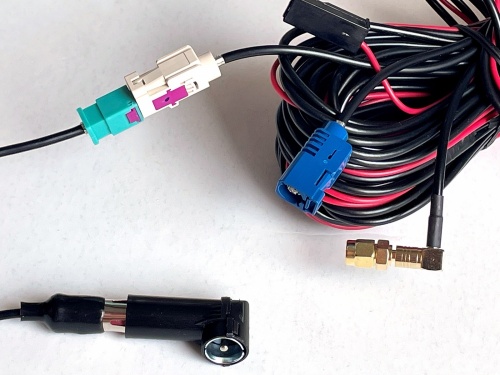

- ALSO included - SMB to SMA (screw type) adapter. If you're unsure whether your radio (for DAB) has SMB or SMA this is the one to go for as it covers both.
- FM: Fakra female connector, plus Fakra to DIN adapter included.
- ALSO included - DIN to ISO adapter. If you're unsure whether your radio (for FM) has Fakra, DIN or ISO this is the one to go for as it covers all three.
- GPS: Fakra female connector.
- Frequency ranges: AM 522 - 1710KHz, FM 87.5-108MHz, DAB III 170-240MHz, DAB L 1452 - 1492MHz
- Impedance: 50 Ohm
- GPS Frequency：1575.42 ±1.023MHz / Output Gain: 28dB±3dB / Output Impedance: 50Ω
- Voltage: 12v
- 1 year manufacturers warranty
Shark fin universal DAB aerial - Compatibility
- Compatible with all DAB radios and tuners - complete with built in 5m cables and adapters, please check your connections before ordering.
