Blaupunkt XLf 200A Active Subwoofer

(Inc. 20% VAT)
(£183.33 Exc. VAT)
No stock, delayed dispatch
Free UK delivery / Low cost worldwide shipping available
Product Details

Blaupunkt XLf 200 A - Active Subwoofer

Restore that lost bass with the amazing Blaupunkt XLf 200A active subwoofer. This amazing combined amp and sub has to be the easiest way of adding bass to your in car sound setup. The Blaupunkt XLf 200A active subwoofer is a compact subwoofer speaker with a powerful built-in 300W amplifier and is the ideal solution to adding bass into vehicles where space is a premium.

Only the top products in Blaupunkt's Blue Magic line deserved to carry the name "XL" and this Blaupunkt XLf 200A certainly fits that bill with its excellent sound, deep basses, improved look and feel, and nice design touches such as the aluminum compound cone in a cool blue-metallic colour. In addition to this an integrated digital amplifier boasting high output power - 150 Watts RMS / 300 Watts Max.

The Blaupunkt XLf 200A active subwoofer replaces the highly popular Blaupunkt THb 200A and GTb 200A, but with twice the power!

Blaupunkt XLf 200 A - Active Subwoofer Functions

  • Active Subwoofer enclosure with integrated Class-D Amplifier
  • Small dimensions: 340 x 71/79 x 225 mm, therefore easiest mounting, e.g. even under the front seats
  • Digital Amplifier with high power output: 150 Watts RMS / 300 Watts Max.Power
  • 200mm/8 Subwoofer with Aluminium Compound-Membrane
  • Perfectly matching subwoofer with high rated and peak power handling
  • Easiest connection only 12 volts/ground signal + the signal from the speakers or pre-amplifier required
  • Automatic power-on via high level or RCA/Cinch input no remote signal required
  • Housing material: aluminum die-cast/fiberglass reinforced ABS
  • EPC compatible: easy connection via optional cable for power, ground and speaker signal (Easy Power Connection EPC)

Blaupunkt XLf 200 A - Active Subwoofer Technical details

System details

  • Closed subwoofer enclosure with integrated Class-D amplifier

Amplifier details

  • Type: Class-D (Digital)
  • RMS Power: 150 watts
  • Max Power: 300 watts
  • Frequency response: 20 10 Hz
  • Signal/Noise ratio: >92 dB
  • Input sensitivity: 0.1 9V
  • Low-pass filter crossover frequency: 50150 Hz
  • Phasing control: 0 - 180
  • Audio-in: 2x Cinch/RCA, 2x Highlevel
  • Automatic power-on no remote signal required!
  • After 60 sec. without any signal the amplifier will automatically switch off
  • Operation indicator: dual-color LED (green / red)

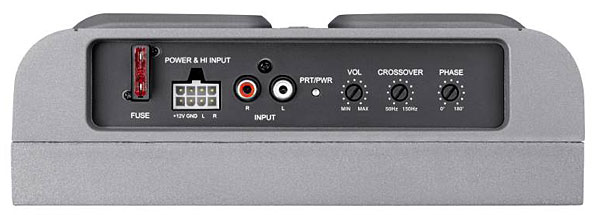

Blaupunkt XLf200A Connectors

Speaker details

  • Diameter: 200 mm
  • Cone material/-color: Aluminum Compound / blue-metallic
  • RMS power handling: 150 watts
  • Peak power handling: 300 watts
  • Impedance: 0.6 ohms
  • Frequency response: 20 150Hz
  • Sound pressure level 2.0 V/m: >92 dB

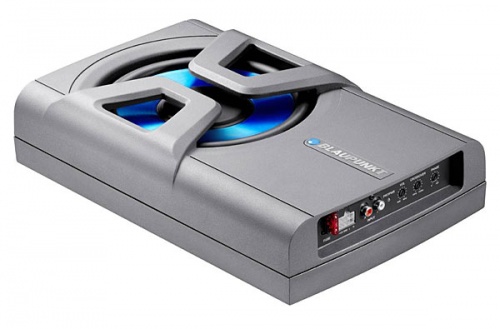

Blaupunkt XLf200A subwoofer view

Subwoofer Housing

  • System: closed box
  • Material: aluminum die-cast / fibreglass-reinforced ABS
  • Housing colour: dark silver
  • Dimensions W x H x D: 340 x 225 x 79 mm

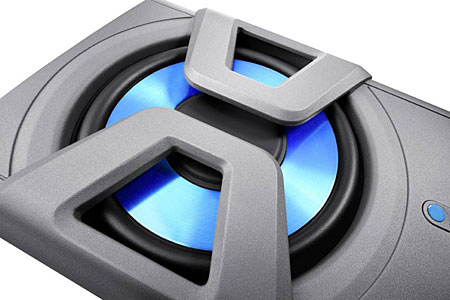

Blaupunkt XLf200A subwoofer top view

Included in the box

  • Subwoofer enclosure
  • Adapter cable for highlevel, power supply and ground connection
  • Fuse 10A
  • User manual
  • Installation material: metal strip, special screws
  • Warranty: 12 months
  • Blaupunkt part number: 1 061 110 581 001

Optional Accessories

  • Easy Power Connection-Cable (not included, available separately)
