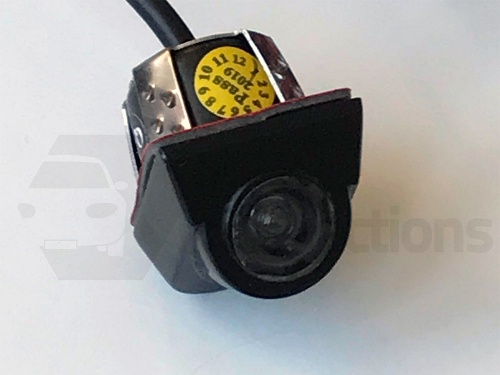

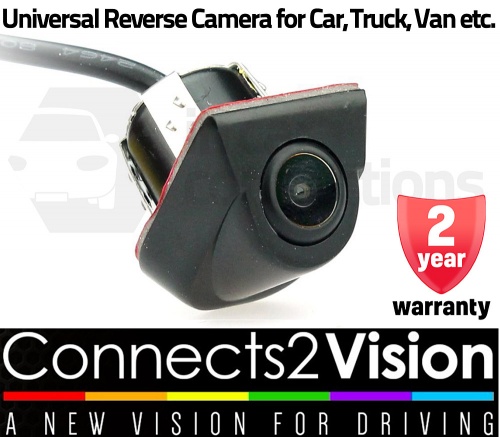

CAM-17 Universal reverse camera for car, truck, van etc.
This CAM-17 high quality small and discreet universal reversing camera is suitable for cars, vans, trucks etc.

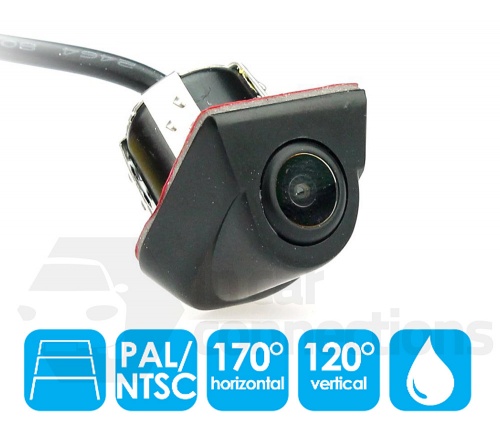

Universal reverse camera CAM-17 - Features
- Universal reverse parking camera.
- Drill to Fit Reverse Camera for Horizontal Surfaces.
- Image Sensor: 1099 HD CCD
- Mirror/Normal Image Adjustment.
- TV Lines: 480
- Fixed Angle Mounted
- Horizontal Angle: 170 Degrees
- Vertical Angle: 120 Degrees
- Resolution: 976 x 496
- Minimum Illumination: 0.1 Lux
- TV System: NTSC/PAL
- Video Output: 1.0V p-p 75ohm
- Operating Voltage: 12V DC (Negative Ground)
- Current Consumption: 120mA @ 13.8V
- Waterproof Rating: IP68
- Operating Temperature: -20 Degrees C to +70 Degrees C
- Parking Lines: Yes
- Removable Lines: Yes
- Image Adjustment: Yes (Mirror/Normal)
- Enhanced Performance In Low Light: Yes
- Connects2 part number - CAM-17
- 2 year warranty

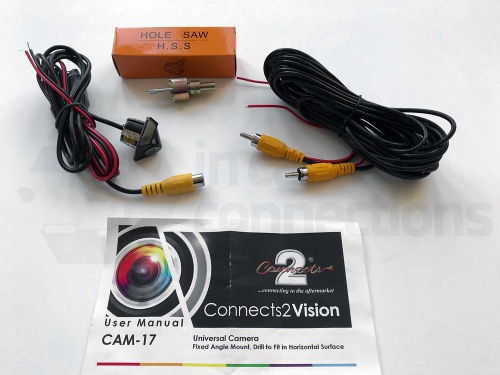

Universal reverse camera - Contents
- Camera with 1m cable to mini Male 6 pin connector.
- 1m camera connection cable with mini Female 6 pin connector and RCA Female connector.
- 6m Male to Male RCA extension cable.
- 18mm hole saw.
Universal reverse camera - Installation
- Read the manual prior to installation. Technical knowledge is necessary for installation. Please ensure you use the correct tools to avoid damage to the vehicle or product.
- 1. Connect the Black wire to a suitable ground and the Red wire to a switched +12V supply.
- 2. If the camera is to be used in the rear of the vehicle, the Red wire should be connected to the reversing light circuit or an interface which provides a reverse signal.
- 3. Select a suitable location for the camera and ensure that the area is free from all cables, fuel & oil. Whenever possible, avoid locations that are subject to road dirt & water spray.
- 4. Aim to mount the camera preferably 45-60cm from the ground and cut a suitable hole using the cutting tool provided.
- 5. Using the supplied video cable, connect the camera to the display screen and ensure that the image is displayed correctly.
- 6. To swap the image from mirror to normal view, cut the small White looped wire which is located on the camera connection cable.
- 7. To remove the parking line feature, cut the small Blue looped wire which is located on the camera connection cable.
