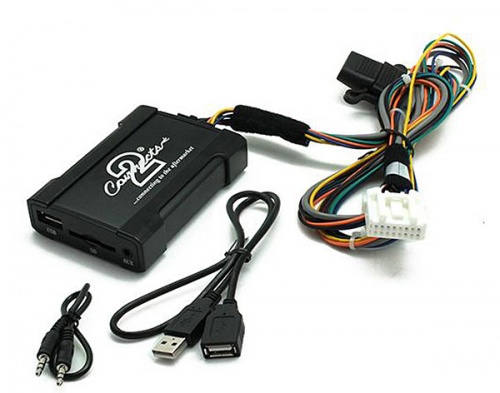

CTAMZUSB001 Mazda USB adapter for Mazda 2 3 5 6 MX-5 and RX-8
This Mazda in-car USB adapter interface is compatible with the Mazda 2 3 5 6 MX-5 and RX-8 and plugs directly into the back of your original Mazda car stereo (see compatibility information below). This Mazda USB adapter allows you to connect almost any portable audio device: USB flash-drive pen, iPod, iPhone or iPad (via 3.5mm jack), Mini-Disc player (via 3.5mm jack), CD player (via 3.5mm jack), MP3 player (USB or 3.5mm jack), Mobile phone music player (via 3.5mm jack), SD and MMC cards. (USB input is NOT suitable for iPods).
The Mazda USB adapter provides MP3 folder and track control (via USB) plus USB power to the device. There is also an SD card slot and 3.5mm jack aux input making this Mazda USB interface a truly versatile device.
CTAMZUSB001 Mazda USB adapter features
- Simply plugs into the CD changer input at the rear of the Mazda factory fitted radio.
- To access an external USB device via the interface simply select CDC or CD Changer mode on your stereo.
- To access music it is important that the music has been saved/organised into folders named CD01, CD02 ... CD06. It is recommended that each folder contains a maximum of 99 tracks/songs.
- To change tracks use the seek buttons on the stereo or steering wheel controls.
- Random track play can be activated by pressing the random button if present on stereo.
- Supplied with instructions which can also be viewed here (opens in new window).
- Very easy 'plug n play' installation.
- Connects2 part number - CTAMZUSB001
- 2 years warranty
Mazda USB adapter CTAMZUSB001 compatibility
This Mazda CTAMZUSB001 USB adapter is compatible with the following:
- Mazda 2 - 2006 - 2009 with standard Mazda radio with 16 pin CD changer connector at rear (not MP3 radio).
- Mazda 3 - 2006 - 2009 with standard Mazda radio with 16 pin CD changer connector at rear (including Bose).
- Mazda 5 - 2006 - 2009 with standard Mazda radio with 16 pin CD changer connector at rear (not MP3 radio).
- Mazda 6 - 2006 - 2009 with standard Mazda radio with 16 pin CD changer connector at rear.
- Mazda MX-5 - 2006 - 2009 with standard Mazda radio with 16 pin CD changer connector at rear.
- Mazda RX-8 - 2006 - 2009 with standard Mazda radio with 16 pin CD changer connector at rear (Head unit firmware between 9.55 and 9.99 only, excluding 9.81).
- Plus other models with compatible head-unit.
- NOT compatible with models that have a built-in CD changer.

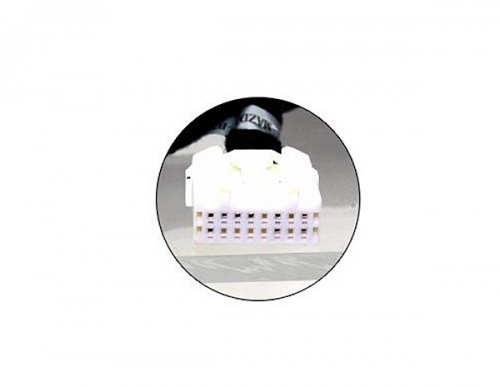

Please note: The compatibility information provided for this Mazda USB adapter interface is provided as a guide only. Please ensure that the make, model and year of your vehicle matches the above and that your car has the suitable connector to take the plug pictured above. There may be more than one USB adapter available for Mazda vehicles, please view all of the available options.
Optional accessory - Bluetooth module for handfree calls and streaming

Why not add the optional Connects2 Bluetooth module to this Mazda USB adapter and benefit from hands-free calls and the ability to stream music from your mobile phone via Bluetooth. Please see the Connects2 BTKIT add-on Bluetooth module below.
