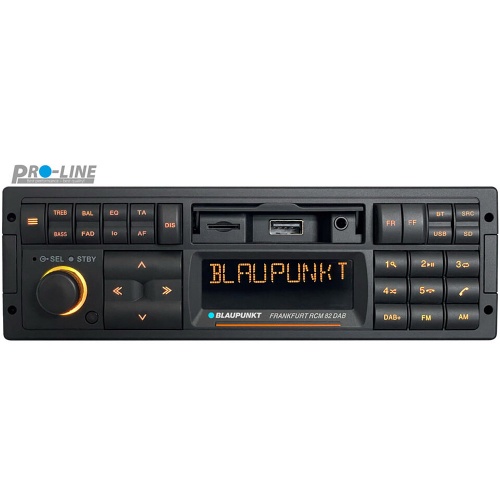

Blaupunkt Frankfurt RCM 82 DAB retro 90's car radio with DAB, Bluetooth, USB, AUX etc.
The classic 90s car radio returns! The relaunched cult car radio Blaupunkt Frankfurt RCM 82 DAB with many new features!
Over the years, some models have become true cult objects. Now Blaupunkt presents the new interpretation of the popular single DIN car radio and combines the unique selling points of the 90s model with new technologies and functions. The result is the Blaupunkt Frankfurt RCM 82 DAB.

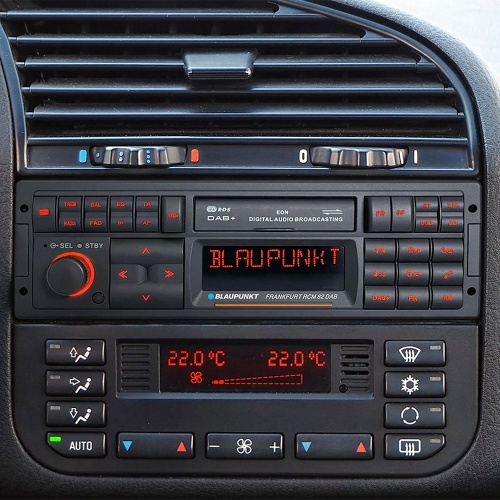

Its operating concept, simple design and crystal-clear reception contributed significantly to the popularity of the original Frankfurt RCM 82. The original model was often installed in the VW Golf III, Ford Escort, BMW E30/E34/E36, Opel Kadett, MB W124/R129/W140, Porsche 911/944/928 and many more in the 90s. Now it returns as "Blaupunkt Frankfurt RCM 82 DAB" in the old guise, but with the latest technology. And with “Variocolour” (4,096 colours), the illuminated buttons and the display can be perfectly matched to the colour of the car model for a coherent overall picture.
Thanks to the Blaupunkt Codem IV FM RDS and DAB+ tuner, first-class reception also remains a strength of the new model. New are the numerous interfaces, including two USB ports, an Aux connection and a microSD slot.
Audio streaming via Bluetooth is also not a dream of the future for the returning legend. Moreover, the radio bears the "Made for iPhone/iPod" label and ensures appropriate compatibility.
The audio sources can all be selected directly via buttons, and many other settings can also be accessed directly at the touch of a button. Further functions are located in the clearly structured menu, which is presented in German or English. All settings are permanently stored even if the battery is disconnected. This means that the entertainer from the 90s has arrived in the present.
The new "Blaupunkt Frankfurt RCM 82 DAB" has a short installation depth – ideal for youngtimers with shortened installation slots. But it is not only the car radio itself that takes the user on a journey through time; the packaging of the device has also been elaborately designed and modelled on the original.
NOTE: This radio does not play CDs.
Need more than one? Bulk discounts available.
Blaupunkt Frankfurt RCM 82 DAB Main Highlights
- High-End CODEM IV World-tuner
- FM, AM, DAB, DAB+ Tuner with radiotext/DLS
- Traffic function
- Service following
- Introscan Presets and Band
- USB (2x), microSD with MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV Support
- Analog audio input on the front (AUX-IN)
- Apple iPod Support
- Telephony via int. or ext. microphone
- Audio streaming with track info
- Audio mix-option for mobile navigation
- Voice assistant support (e.g. Siri, Google, Alexa)
- Automatically switch on when there is an incoming call (Wake-up on call)
- Two phones can be connected at the same time (Twin-Connect)
- Phonebook access
- Digital signal processing (DSP)
- 2x 14-band equalizer (front and rear channels separately adjustable)
- Sound presets
- 4-channel pre-amp out + subwoofer preamp output
- 4 x 50 Watt
- Adjustable illumination colour of buttons and display (Vario Colour, 4,096 colours)
- 2-line display
- Brightness control of display and keys (DIM function)
- Direct access to all audio sources
- Permanent memory
- Short body (low installation depth)
- IR-remote control option, RC-10 compatible
- Steering wheel remote control support (analog SWC input)
Blaupunkt Frankfurt RCM 82 DAB FULL Specification
RADIO ANALOG / DIGITAL features
- Tuner Type - High-End Automotive Tuner Blaupunkt CODEM IV
- World Tuner (switchable) - EU, USA, South America, Thailand
- Frequency bands - FM, AM, DAB, DAB+
- Frequency band FM - 87.5 – 108 MHz
- Frequency band MW - 531- 1602/ 530- 1710 kHz
- Channels (frequency band) DAB/ DAB+ - 5A- 13F (174,928- 239,200 MHz)
- Station memory - 15 x FM, 10 x AM, 15 x DAB
- Station memory levels deactivatable - FM2, FMT, AM, AMT, DAB2, DAB3
- Station display (PS) - Yes
- Radiotext/ Radiotext Plus (RT/ RT+) -Yes/ No
- Display DLS/ ENSEMBLE/ SERVICE - Yes/ Yes/ Yes
- Alternate frequency function (AF) - Yes
- Traffic Radio (TA) FM/ DAB - Yes/ Yes
- RDS Time (CT) - Yes
- Enhanced Oth. Netw. (EON) - Yes
- Regional function (REG) - Yes
- Program type identifier (PTY) FM/ DAB - Yes/ Yes
- PTY Seek FM/ DAB - Yes/ Yes
- Travelstore/ Number of Presets for Travelstore - Yes/ 5x FMT, 5x AMT
- Band Scan + Preset Scan FM/ DAB - Yes/ Yes
- Sensitivity (FM) - Two levels (lo / dx)
- Noise suppression (FM) - Yes
- Hi-Cut (FM) - Yes (multi-level switchable)
- DAB-DAB Service following - Yes
- DAB-FM Service following - Yes
- Service scan - Yes
- Ensemble/ Service selection - Yes/ Yes
- Ensemble/ Service browsing - Yes/ Yes
- Frequency response FM - 30 – 15.000 Hz +/- 3 dB
- Frequency response DAB - 20 – 20.000 Hz +/- 3 dB

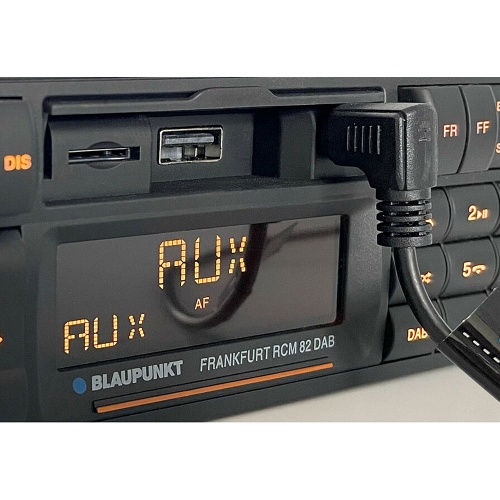

- AUX front - Yes (3.5 mm jack)
- AUX detection / automatic source activation - Yes

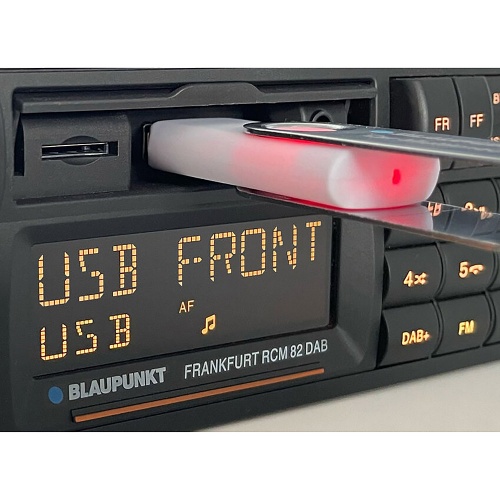

- USB front - Yes (type A, recessed jack)
- USB rear - Yes (type A, cable)

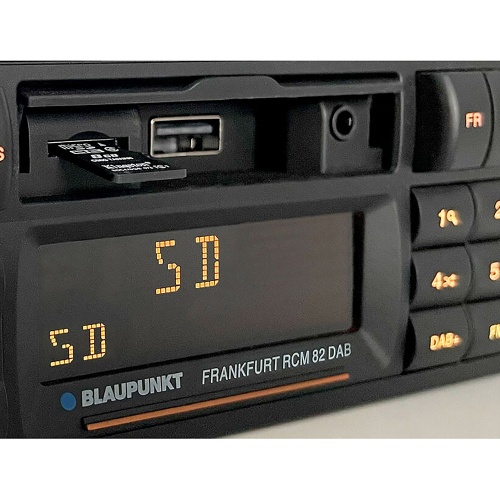

- Memory card reader - Yes (microSD, microSDHC, microSDXC)
- Concealed front inputs - Yes (USB & microSD usable with flap closed)
- Compatible file system (USB, memory cards) - FAT16, FAT32, exFAT
- Maximum storage size (USB, memory cards) - > 128 GB
- Maximum file/folder count (USB, memory cards) - > 30,000
- Playback formats - MP2, MP3, WMA, FLAC, M4A(AAC), APE, WAV
- Display options - ID3V2 (title, artist, album), folder, file, playtime
- Folder & file browsing - Yes
- Scrolling - Yes (single/ continuously)
- iPod, iPhone control - Yes (USB front and rear)
- Shuffle folder/ media - Yes/ Yes
- Repeat Title / Folder/ All - Yes/ Yes/ Yes
- Mix / Repeat / Scan - Yes/ Yes/ Yes
- Phone call - Yes
- Internal microphone - Yes
- Connectivity ext. microphone - Yes
- Answer/ reject callYes/ Yes
- Access phonebook - Yes (max. 1000 numbers)
- Audio streaming - Yes
- Audio streaming ID3 track display - Yes (Title, Artist, Album, Playtime)
- Voice assistant access (e.g. Siri, Google, Alexa) - Yes
- Cell phone navigation audio mix - Yes
- Auto wake-up on call - Yes (when radio off + ignition on)
- Fast pairing without PIN - Yes
- Automatic reconnection - Yes
- Bluetooth version - 5.0 LE
- Number of paired devices - max. last 5
- No. of devices connected at the same time - max. 2 (Twin Connect)
- Supported profiles - A2DP, AVRCP, HFP, SPP
- Audio Codecs - aptX, AAC, SBC
- *Availability/support of functions depend on the phone/app used
- Equalizer Number of bands/design - 2 x 14/parametric
- Bass/treble adjustment - Yes / Yes (+/- 12 steps)
- Source specific bass/treble adjustment - Yes
- Balance/fader - Yes / Yes (+/- 12 steps)
- HPF/LPF - Yes, separately for front/rear channels, variable
- Loudness - Yes
- Sound Presets - Yes (Rock, Pop, Classical)

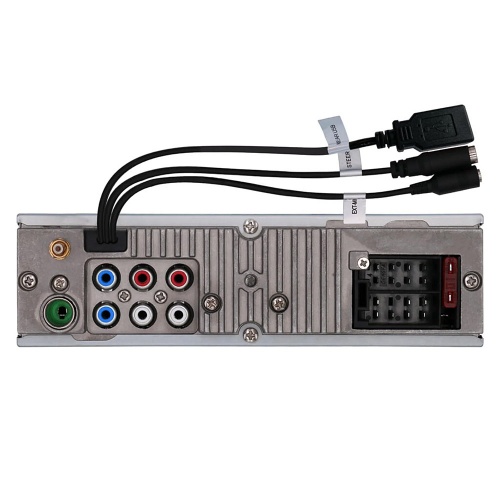

- Speaker Outputs (Channels) - 4
- Preamp Outputs (Channels, Voltage) - 4 (RCA, < 4V)
- Max. Power - 4 x 50 watts
- Sine power at 14.4 V - 4 x 24 watts (according to DIN 45324)
- Sub-Out - 2 (RCA, gain/ frequency variable)
- Display - LCD, negative, anti-reflective, wide angle 2 lines, Alphanumeric/Symbols
- Illumination colour display/keys - Vario Colour, 4,096 colours
- Day/Night mode - Yes (manual/via dimmer connection)
- Brightness - Multi-level, variable
- Time display - Yes
- HMI languages - English, German
- Low standby current - Yes (< 3,5 mA )
- Antenna inputs - FM DIN/ ISO, DAB SMB (with 12 V phantom power)
- Telephone mute - Yes
- Ext. handsfree microphone connector - Yes
- Remote control - Yes (IR input for optional RC-10 and card remote)
- Steering wheel remote control (SWC) - Yes (analog, programmable, pre-programmed)
- Variable scan time - Yes
- Confirmation beep - Yes (can be deactivated)
- Control panel type - Fixed panel
- Colour panel/ decor ring - Black/ Black
- Software Update - via USB
- Permanent Memory - Yes (Settings & Presets)
- Demo mode - Yes
- Weight - approx. 0.67 kg
- Dimensions - 50mm x 178mm x 116mm (H x W x D, housing only) 58mm x 186mm x 10mm (H x B x T, front w/o keys)
- Operating voltage - 10.5 – 14.4 V
- Power consumption - in operation: < 10A, 10 sec. after ACC power off: < 3.5 mA
SCOPE OF DELIVERY features
- External BT microphone - Yes
- Unlocking tool - Yes
- Connectors (ISO A, B) - Yes
- Antenna adaptor (DIN/ ISO) - Yes
- DAB antenna - Optional accessory required
- IR remote control - Optional accessory required
