Low Profile Motorised Vent Fan for Vans - White
Motorised van vent with black inner grille and 3-way switch.

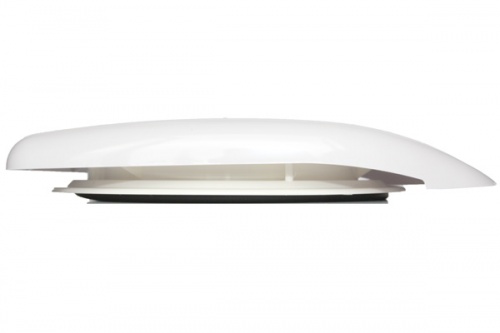

Ultra low profile motorised van ventilator with an external height of just 64mm, low enough to fit under most roof mounted carrying racks. This motorised vent for vans features a reversible motor with suction / blowing action and is suitable for applications such as a van, bus, caravan etc. It is also suitable for use with animals and some light gases. This low profile motorised ventilator for vans is available in a choice of 12v and 24v. The motorised vent is non-corrosive and is constructed with a robust design. The perfect solution to ventilating your vehicle. Suitable for many van makes such as Ford, VW, Mercedes, Vauxhall, Citroen, Peugeot, Renault and more.
This particular version of the motorised van vent is supplied with a black inner grille suitable for use in dog vans and animal transport vehicles such as horse boxes and trailers. See the image of the grille below.
It is also possible to spray paint this roof vent in order to match the colour of your vehicle. Please see this example which shows the van vent spray painted blue and the steps required in installing the vent (click here).
Fitting: This vent is suitable for flat roofs but it is also possible to fit to ribbed roofs by filling in the gaps with a suitable material plus sealant. Please ensure your installer is capable of this.
This is the White version of the fan. Please see below for the black version.
Low Profile Motorised Vent for Vans features
- 230-245mm dia. roof cut-out (see further dimensions below)
- Reversible motor suction / blowing
- Robust design
- Ultra low modern design
- Complete with roof seal gasket
- Available in choice of 12v and 24v (Please select option above)
- Fitting instructions included
- Roof Top Opening - 230-245mm
- External Height - 64mm
- Speed (RPM) - 2600
- Air Flow (M3/H) - 850
- Watt (W) - 80
- Noise Level (DB)A - 52
- Weight - 1.3kg
- Supplied with black inner grille (image below)
- Colour - white. Also available in black, see below.
- Supplied with 3-way dash mounted switch (image below)
- Optional speed control unit available, please see related products below.
- 12 months warranty
Low Profile Motorised Van Vent Dimensions

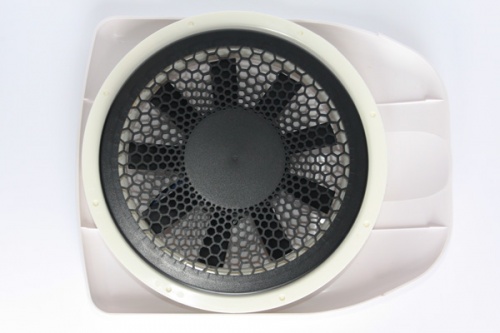

Motorised Vent - Inner Grille for Dog Vans
Motorised Vent - 3 way switch
