Low Profile Motorised Vent for Ambulance and Vans
Motorised van vent with inner valve with light, plus 3-way switch.

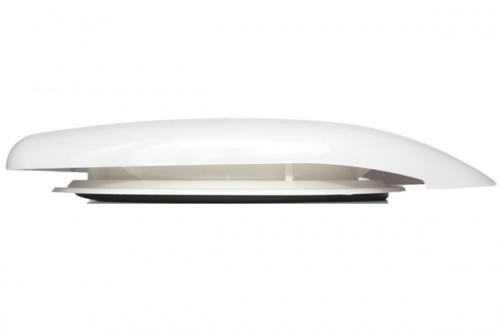

Ultra low profile motorised van ventilator with an external height of just 64mm, low enough to fit under most roof mounted carrying racks. This motorised vent for vans features a reversible motor with suction / blowing action and is suitable for applications such as a van, bus, ambulance, caravan etc. It is also suitable for use with animals and some light gases. This low profile motorised ventilator for vans is available in a choice of 12v and 24v. The motorised vent is non-corrosive and is constructed with a robust design. The perfect solution to ventilating your vehicle. Suitable for many van makes such as Ford, VW, Mercedes, Vauxhall, Citroen, Peugeot, Renault and more.
This particular version of the motorised van vent is supplied with an inner valve with centre light as pictured below. This valve can be used to close the vent. This version of the motorised vent with inner valve with light is particularly suited to ambulances. Please note: The inner portion of this vent is designed for van roofs that have a roof lining, and therefore a 1-2 inch gap to bridge. If your vehicle does not have a roof lining, or just a shallow lining it will be necessary to build a small 'infill' with plywood or similar and seal with silicone, in order to provide the space required by the inner. Other versions of the inner valve are available, please see below.
It is also possible to spray paint this roof vent in order to match the colour of your vehicle. Please see this example which shows the van vent spray painted blue and the steps required in installing the vent (click here).
This roof vent is also available in black. If you require the black version please select from the drop-down above.
Fitting: This vent is suitable for flat roofs but it is also possible to fit to ribbed roofs by filling in the gaps with a suitable material plus sealant. Please ensure your installer is capable of this.

Low Profile Motorised Vent for Ambulances and Vans features
- 230-245mm dia. roof cut-out (see further dimensions below)
- Reversible motor suction / blowing
- Non-corrosive
- Robust design
- Ultra low modern design
- Complete with roof seal gasket
- Available in choice of 12v and 24v (Please select option above)
- Roof vent is available in choice of White or Black (Please select option above)
- Fitting instructions included
- Roof Top Opening - 230-245mm
- External Height - 64mm
- Speed (RPM) - 2600
- Air Flow (M3/H) - 850
- Watt (W) - 80
- Noise Level (DB)A - 52
- Weight - 1.3kg

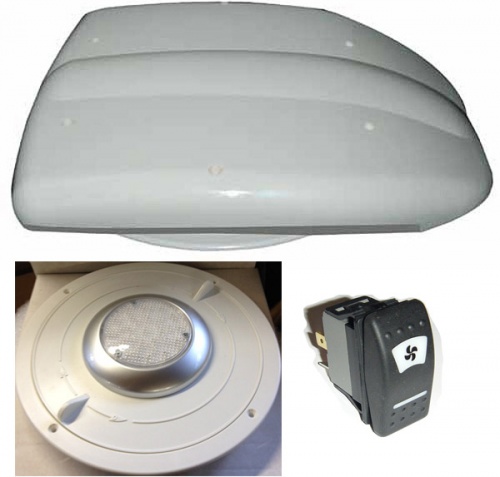

- Supplied with inner valve with light (image below)
- Supplied with 3-way dash mounted switch (image below)
- Optional speed control unit available, please see related products below.
- 12 months warranty
Low Profile Motorised Van Vent Dimensions

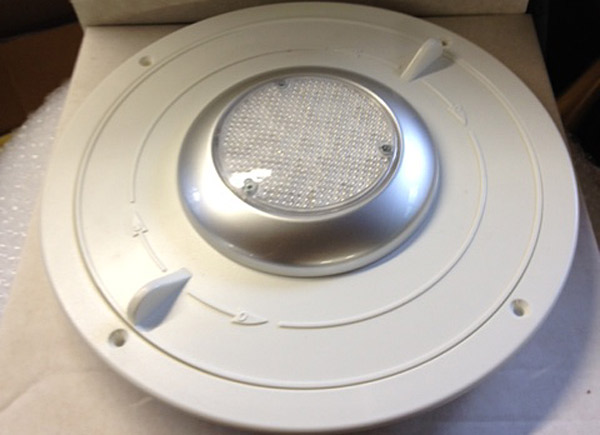

Motorised Vent - inner valve with light

Motorised Vent - 3 way switch
